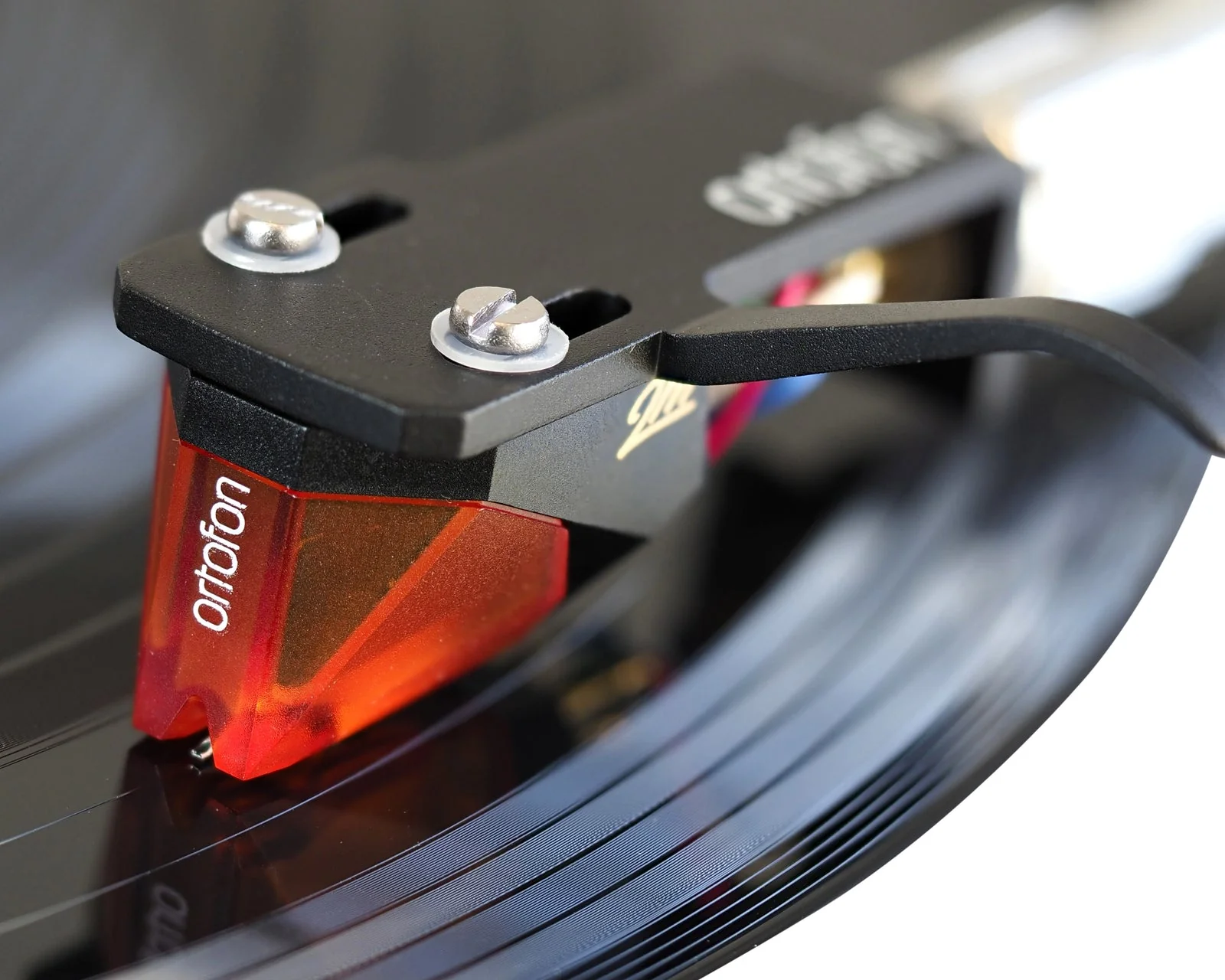

New / Ortofon 2M Bronze // MM Cartridge / Nude Fine Line Diamond

The 2M Bronze features a Nude Fine Line diamond, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.

SPECS

Output voltage 1000 Hz, 5cm/sec. 5 mV

Channel balance 1 kHz-1 dB

Channel separation 26 dB @ 1 kHz; 15 dB @ 15 kHz

Frequency response 20-20.000 +2 / -0 dB

Tracking ability 315Hz

Recommended tracking force 80 µm

Compliance, dynamic, lateral 22 µm/mN

Stylus type Nude Fine Line

Stylus tip radius r/R 8/40 µm

Tracking force range 1.4-1.7 g (14-17 mN)

Tracking force, recommended 1.5 g (15 mN)

Tracking angle 20°

Internal impedance, DC resistance 1.2 kOhm

Internal inductance 630 mH

Recommended load resistance 47 kOhm

Recommended load capacitance 150-300 pF

Cartridge colour, body/stylus Black/Bronze

Cartridge weight 7.2 g
20 g (with integrated headshell)

Length 52 mm (with integrated headshell)

Replacement stylus unit 2M Bronze (interchangeable with 2M Black)

Stylus lifetime with proper care we find that up to 1000 hours is possible without degradation of performance

LINER NOTES

The cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire. 2M Series styli interchangeability:The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations: - 2M Red, 2M Blue and 2M Silver- 2M Bronze and 2M Black- 2M Mono and 2M 78Compatibility with Rega brand TT/TA: REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge.
